For the past couple of weeks I have been putting together a Minecraft 1.12 Raspberry Pi Guide and have been using my several year old Samsung Evo 32GB MicroSD cards. After reading several blogs and benchmarks I decided to purchase some Samsung Evo+ 32GB cards off Amazon because they benchmarked better than my orange Evo cards I already have.
Let me start out by saying I love Amazon and am a Prime member and buy almost everything there. I bought two Evo+ 32GB cards from Amazon and received them very quickly as usual. However, once I started using them, I figured out that they were either fake or Samsung had revised the model and it performed terribly. I don’t just mean slightly underspec bad either. I mean worse than my Walgreens ghetto off the shelf cards I bought on clearance!
In this article I’m going to show you how to benchmark your SD card on the Raspberry Pi, and I’m also going to include how to use a popular utility to benchmark them on Windows if you don’t have a Raspberry Pi.

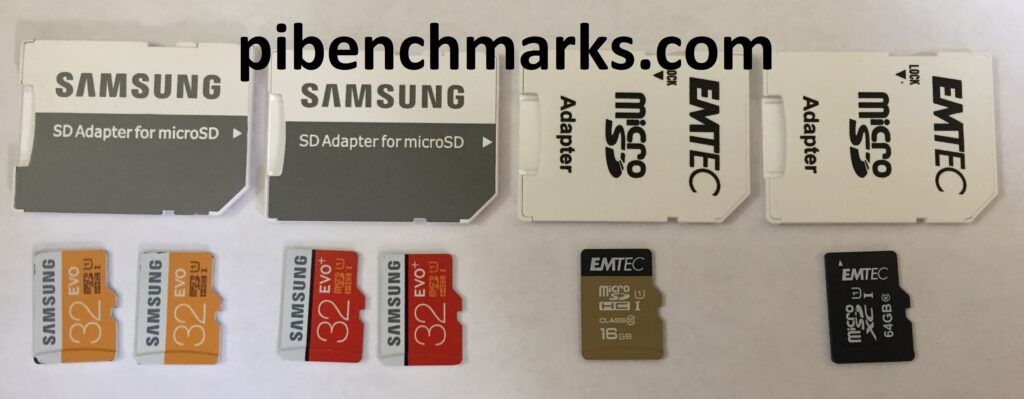

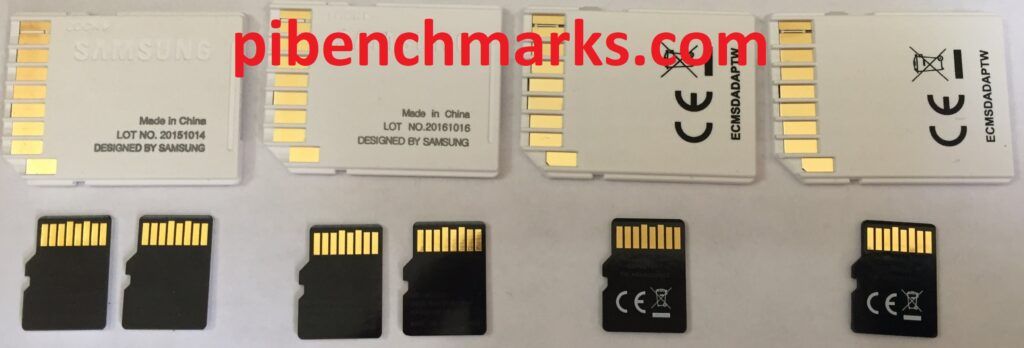

Unfortunately my camera is not good enough to capture the tiny inscriptions on the cards, so I will give them here:
2x Samsung Evo 32GB
MB-MP32D
MBMPBGVEODFW-F
Made in Philippines
2x Samsung Evo+ 32GB
MB-MC32D
MBMCBGVEDFCW-P
Made in Philippines
1x EMTEC 16GB (Walgreens Clearance)
1x EMTEC 64GB (Walgreens Clearance)
Benchmarking MicroSD on Raspberry Pi
For the Raspberry Pi I wrote a script that will let you benchmark your SD card. It also contains a list of benchmarks for common cards on the market, including the Evo+. Check it out here: Pi Benchmarks
This script tests hdparm (direct read speed from the card without OS interference), ddwrite (Raspbian recommended way of testing SD cards), and iozone’s 4k R/W benchmarks. 4k read/write performance is extremely important for Raspberry Pis. Most MicroSD cards are meant for large sequential reads/writes like taking a photo/video in a camera. We are not interested in this performance usually for our purposes because an operating system makes many small random read writes. These tools test this crucial type of performance for every day operating system use as well.
Benchmarking on Windows
You can still benchmark your MicroSD cards on Windows if you do not use a Raspberry Pi. The most popular software to do so is called CrystalDiskMark and can be located here: CrystalDiskMark Official Page. It can also be set to test random 4k R/W performance so no matter what board you use or whatever you are using your card for it can give you an idea of how your card is performing.
Results
All of these tests were ran on the same Raspberry Pi 3 Rev B board with the SD reader overclocked to 100hz. Here is where things get interesting. Let’s start with my classic Samsung Evo 32GB:
microSD clock: 100.000 MHz
Running hdparm test…
/dev/mmcblk0: Timing buffered disk reads: 106 MB in 3.04 seconds = 34.88 MB/sec
Running dd test…
51200+0 records in 51200+0 records out 419430400 bytes (419 MB) copied, 24.6942 s, 17.0 MB/s
Whoa…. that can’t be right. 8.2MB/sec on the ddwrite? 24.46MB/sec on the hdparm?! I must have a defective card, so I imaged the second card and ran it again:
microSD clock: 100.000 MHz
Running hdparm test…
/dev/mmcblk0: Timing buffered disk reads: 74 MB in 3.02 seconds = 24.49 MB/sec
Running dd test…
51200+0 records in 51200+0 records out 419430400 bytes (419 MB) copied, 53.3626 s, 7.9 MB/s
Oh…. oh my. It’s the same or even worse in some places. What is going on?
Alright, well, lets try the EMTEC clearance cards and see how those do.
microSD clock: 100.000 MHz
Running hdparm test…
/dev/mmcblk0: Timing buffered disk reads: 90 MB in 3.06 seconds = 29.37 MB/sec
Running dd test…
51200+0 records in 51200+0 records out 419430400 bytes (419 MB) copied, 58.309 s, 7.2 MB/s
Running iozone test…
random random kB reclen write rewrite read reread read write 102400 4 260 255 6664 6598 6017 251
iozone test complete.
microSD card benchmark complete!
Well, that did predictably poorly, but what is stunning is that those numbers are not much worse than the Samsung Evo+ cards I received. The random write was much slower, but the hdparm direct read was actually faster! And now for the final contender, the EMTEC 64GB:
microSD clock: 100.000 MHz
Running hdparm test…
/dev/mmcblk0: Timing buffered disk reads: 94 MB in 3.04 seconds = 30.89 MB/sec
Running dd test…
51200+0 records in 51200+0 records out 419430400 bytes (419 MB) copied, 39.9065 s, 10.5 MB/s
Running iozone test…
random random kB reclen write rewrite read reread read write 102400 4 224 218 7108 7150 6218 220
So, wait a minute, wow! The EMTEC clearance cards actually beat the Samsung Evo+ by nearly 2MB on the dd test, and nearly 5MB on the HDPARM test? That should not be possible. The Evo+ according to most benchmarks is one of the fastest cards on the market. The Evo+ is supposed to easily beat my orange Evos but was slower than the EMTEC clearance cards in every category except for the iozone 4k read/write.
Conclusions
I went to Amazon and immediately ran for the return button only to find out these items could not be returned. I emailed Amazon my benchmarks and told them that these cards must be fake. Amazon was very good and immediately refunded my money and did not require me to return the cards. But are they actually fake? Or did Samsung change their manufacturing process?
After a bunch of research on Google, I stumbled across many others with the same issue. It seems there are tons of fakes of these cards going around and even found similar people who bought them on Amazon/eBay/you name it and got the same performance.
It looks like some people opted to buy it directly from Samsung’s web site (more expensive), or from big electronic chain stores with verified supply chains. This is my recommendation. I recommend you all benchmark your SD cards and find out if you are getting the performance you should be out of your cards and make sure that you don’t have a fake. With so many third party resellers online and no verified supply chain you have no idea what you are getting so unless you buy it direct from the manufacturer or buy it from a giant chain store with a verified supply chain. Otherwise, BUYER BEWARE!
